Prefabricated House Kõiguste - 168 m²

1/4

from 101 200 € + VAT

Interior

1/3

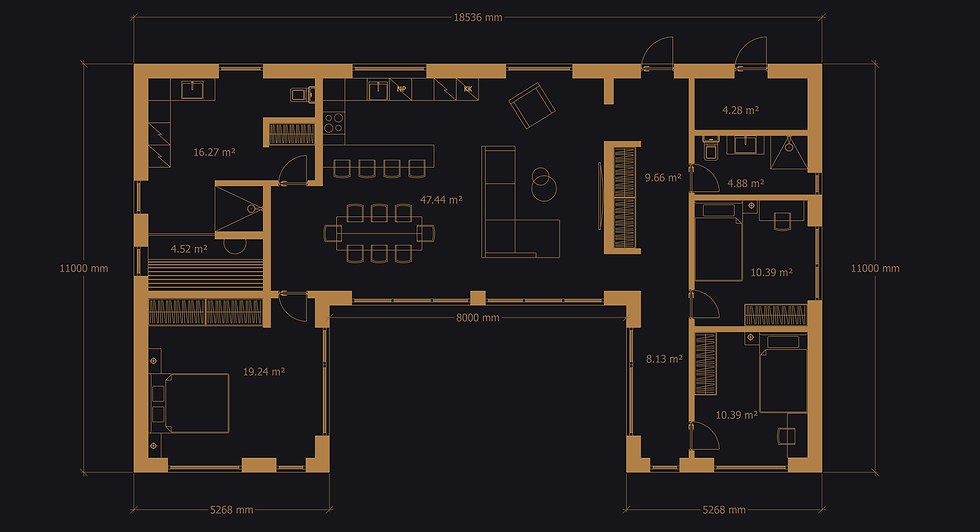

Floorplan

1/1

Living room/kitchen - 47.44 m²

Bedroom 1 - 19.24 m²

Bedroom 2 - 10.39 m²

Bedroom 3 - 10.39 m²

Toilet/shower 1 - 16.27 m²

Toilet/shower 2 - 4.88 m²

Sauna - 4.52 m²

Storage room - 4.28 m²

Corridor 1 - 9.66 m²

Corridor 2 - 8.13 m²

Prefabricated house cross-section

Outer wall

Exterior cladding board

Double battening

Wind barrier plate

C24 45x245mm frame & insulation in between

Vapor barrier membrane

C24 45x45mm battening & insulation in between

Floor

Compacted subbase (4/32fr crushed stone / filler sand)

Limestone screenings

EPS120 3x100mm

C25/30 concrete slab, reinforcement, underfloor heating pipe

Underlay for floor covering

Floor covering

Roof/ceiling 2

Tin sheet

Double battening

Underlayment

Rafters 45x245mm & insulation 250mm

Battening 45x95mm & insulation 100mm

Vapor barrier film

Battening 45x45mm & insulation 50mm

Intermediate ceiling

Loose fill insulation 505mm

C24 45x95mm toothed plate trusses

Vapor barrier membrane

C24 battening

Factory packages

Walls and roof

Walls, roof ja foundation

101 200 € + VAT

Elementmaja seinaelement, katus ja vundament.webp

138 800 € + VAT
